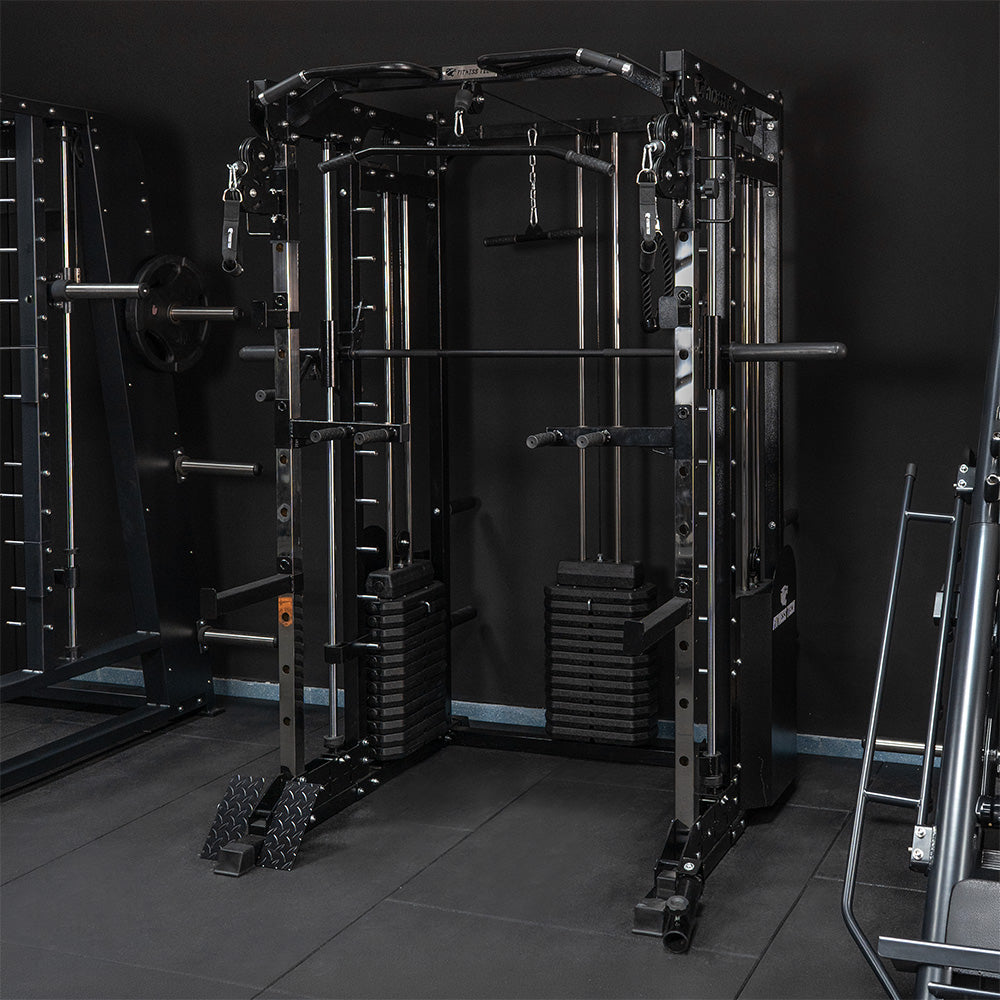

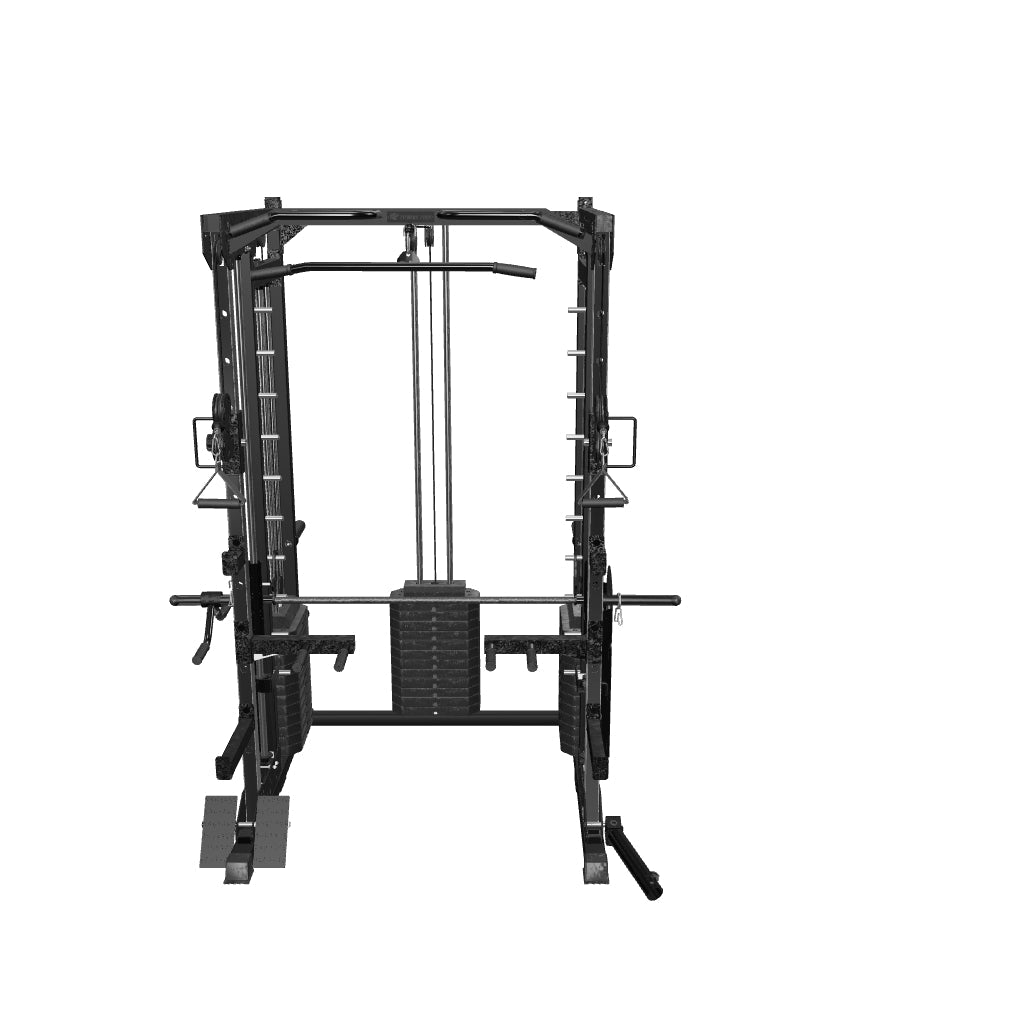

Smith Machine S9000: Advanced multipower with 3 weight towers
The Smith Machine S9000 is an advanced training station designed for those looking to set up a complete and powerful home gym. It combines a guided Smith bar, side pulleys, and an independent central pulley to offer a smooth, stable, and versatile muscle-building experience. Its reinforced steel frame and integrated loading system allow for varied, comfortable, and safe workouts within a single compact unit.
With three integrated weight towers, a total load of 225 kg, and an optimized work design, the S9000 offers a smooth response in every repetition and exceptional adaptability. From basic strength exercises to more advanced routines, this multipower adjusts to different levels and goals, providing a complete workout in any home space.
Multifunctional multipower with guided bar, side pulleys, and central 1:1 pulley
The S9000 combines in a single machine everything needed to train the entire body: squats, bench press, pulls, rows, flyes, pull-ups, and functional movements. Its central pulley with 1:1 ratio allows working with direct loads and more powerful movements, while the side pulleys offer a smooth and controlled range for analytical and isolation exercises. This combination enables creating balanced, varied, and efficient routines without the need for additional equipment.
Features

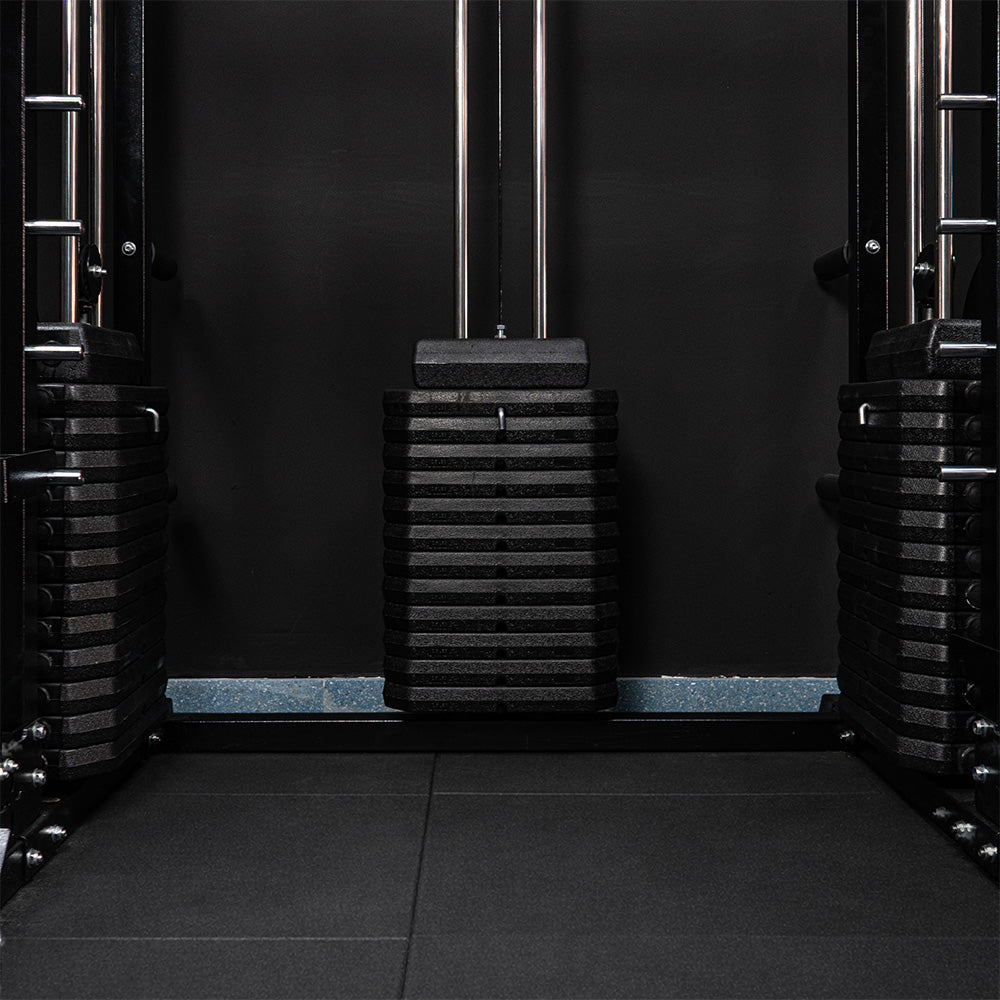

- Three integrated weight towers (225 kg total): allow quick and precise load adjustment, adding more variety and fluidity to training without the need for additional plates.
- Central pulley with 1:1 ratio: ideal for heavy rowing exercises, direct pulls, and movements requiring working with the actual weight.
- Side pulleys with 2:1 ratio: provide smooth and controlled movement for analytical exercises of back, chest, shoulder, and arms.
- Smith bar guided with 25/50 mm coupling: perfect for squats, bench press, and strength exercises with greater stability and safety.
- Full-range pulley system: allows working both on high and low pulleys without limitations.

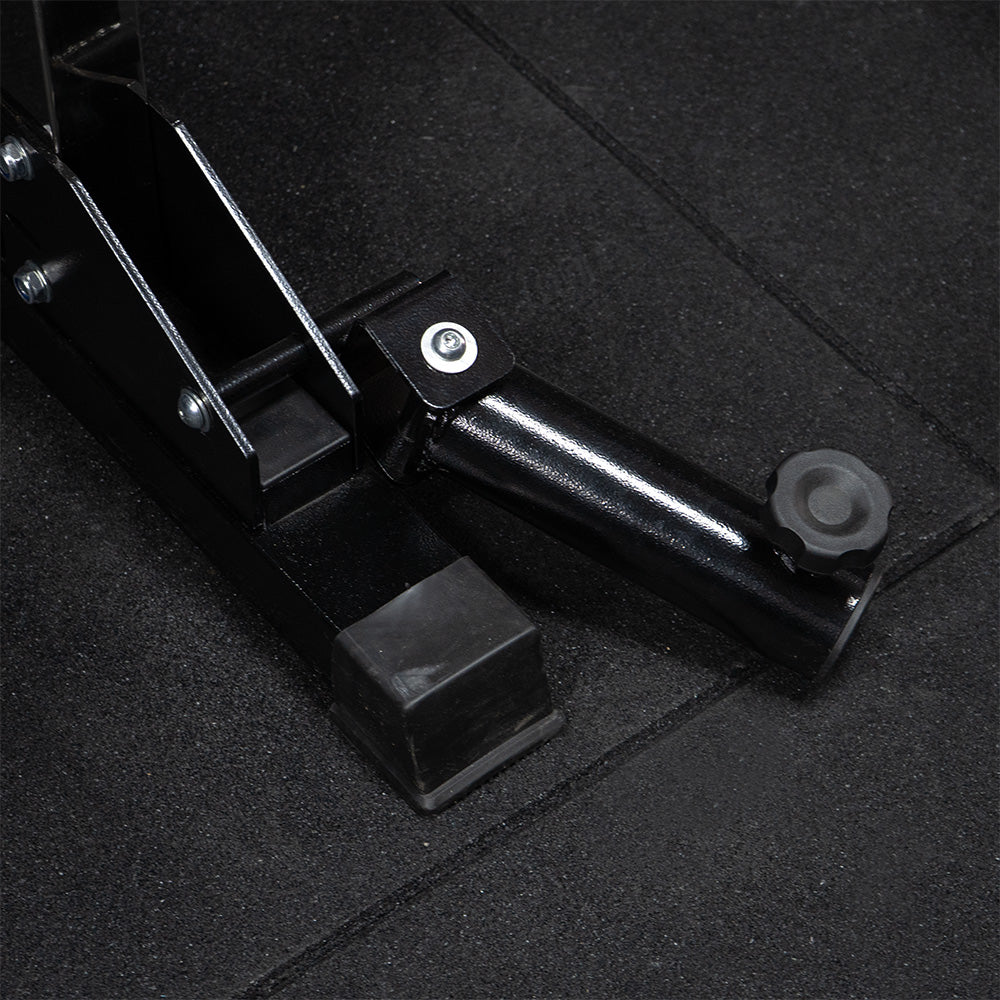

- Landmine included: expands functional training options, allowing rows, diagonal presses, and rotational movements.
- High-strength braided steel cables: ensure smooth pulling, durability, and stability in every repetition.
- Reinforced steel structure: designed to offer maximum stability during intensive home workouts
Specifications
- Dimensions: 135 × 147 × 217 cm
- Weight: 360 kg
- Total counterweight: 225 kg (75 kg in each of the 3 towers)
- Weight of each plate: 5.7 kg
- Recommended load on the Smith bar: 150 kg
- Maximum load supported by the Smith bar: 200 kg
- Central pulley: 1:1 ratio
- Side pulleys: 2:1 ratio
- Steel cable diameter: 5 mm
- Steel frame: 50 × 50 × 2 mm tubing
Included accessories
- Complete grip set: includes straight bar, triceps rope, individual handles, and chains to expand exercise combinations on high and low pulleys.
- Integrated landmine: perfect for functional push, pull, and rotation exercises.
- Smith bar guided and integrated into the structure.
- Multi-grip pull-up bar located at the top.
- Integrated weight towers with plates included (225 kg in total).
- Supports and blockers: J-cups, side safety bars, auxiliary supports, and adjustment pieces to work with the Smith bar or free bar with total stability.
Manual and Maintenance
S9000 vs S8000
| Feature | S9000 | S8000 |
|---|---|---|
| Weight towers | 3 | 2 |
| Total counterweight weight | 225 kg | 150 kg |
| Central pulley 1:1 | Yes | No |
| Net weight | 360 kg | 286 kg |
| Dimensions | 135 × 147 × 217 cm | 191 × 157 × 218 cm |
| Lateral pulley ratio | 2:1 | 2:1 |
