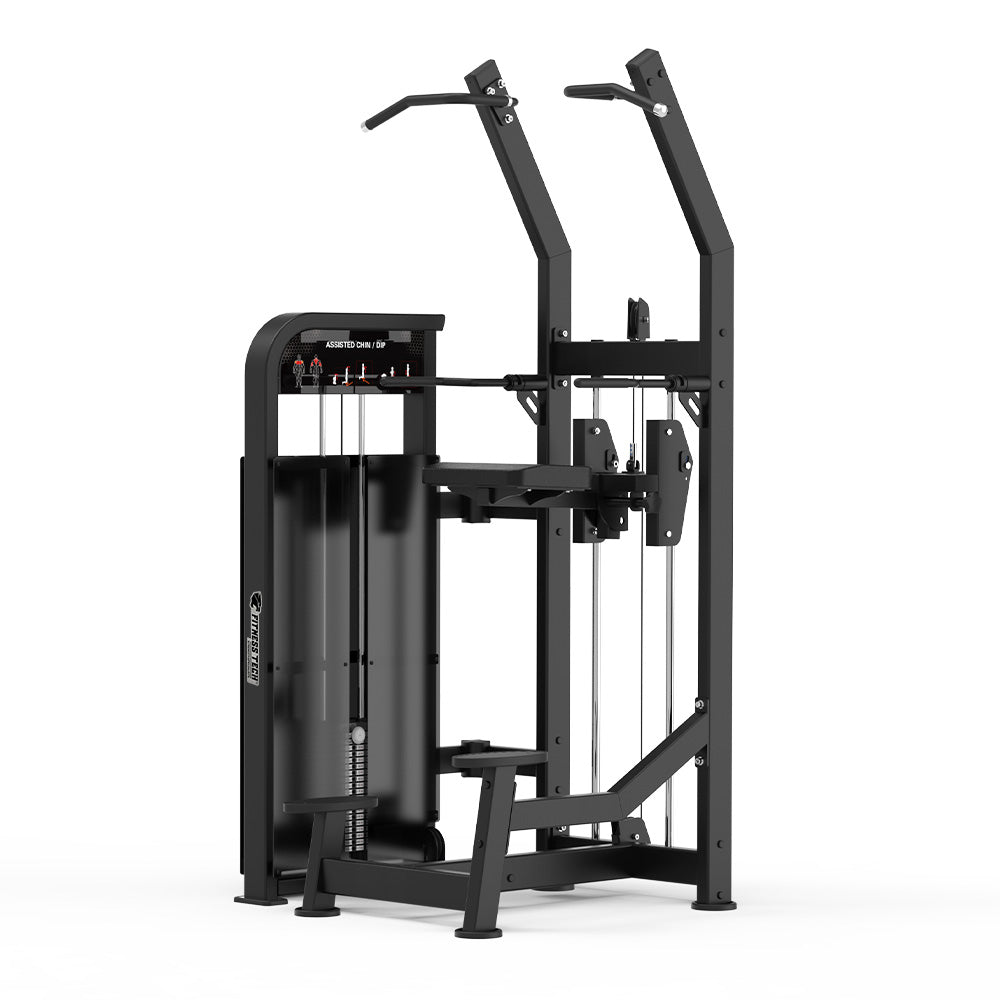

Assisted Chin/Dip | Dual selectorized machine - Compact Series

Professional machine with compact design for assisted pull-ups and dips

The selectorized machine from the Compact Series Assisted Pull-ups and Dips is part of the professional line by Fitness Tech, developed to facilitate bodyweight exercises in a compact, stable, and functional format. Its design allows performing assisted pull-ups and dips from a single station, optimizing floor space and offering an effective solution for gyms, hotels, and sports centers with limited area.

It enables controlled training of the upper body muscles, including lats, biceps, pectorals, shoulders, and triceps, through a selectorized assistance system that supports the user’s technical progression. The 1:1 load ratio provides direct and uniform assistance throughout the entire movement, allowing precise adjustment of the assistance level for both beginners and more controlled training sessions. The frame is manufactured from Q235 rectangular steel tubing measuring 50 × 100 × 2.5 mm with a galvanized anti-corrosion coating, incorporating stainless steel guides that ensure durability and smooth operation.

Controlled progression and compact design

Designed to offer security, control, and comfort, it includes a stable support platform that improves exercise execution and reduces compensations. The foam padding with synthetic leather covering provides comfort and durability for continuous use, while the POM pulley system ensures a smooth, silent, and low-friction movement. Its professional aesthetics and compact configuration make it a functional solution for progression in assisted pull-ups and dips in regular professional use environments.

Main features

• Dual function for assisted pull-ups and dips: allows performing both bodyweight exercises from a single machine.
• Adjustable selectorized assistance: facilitates technical progression through precise control of the assistance level.
• 1:1 load ratio: direct and uniform assistance throughout the entire movement range.
• Galvanized Q235 steel frame: rectangular tubing 50 × 100 × 2.5 mm with anti-corrosion treatment for a solid and secure base.
• Smooth and silent movement: stainless steel guides and POM pulley system for precise and durable operation.
• Rubber-coated steel cable: smooth, durable, and silent transmission.
• Ergonomic padding: foam with synthetic leather covering, comfortable and resistant to continuous use.

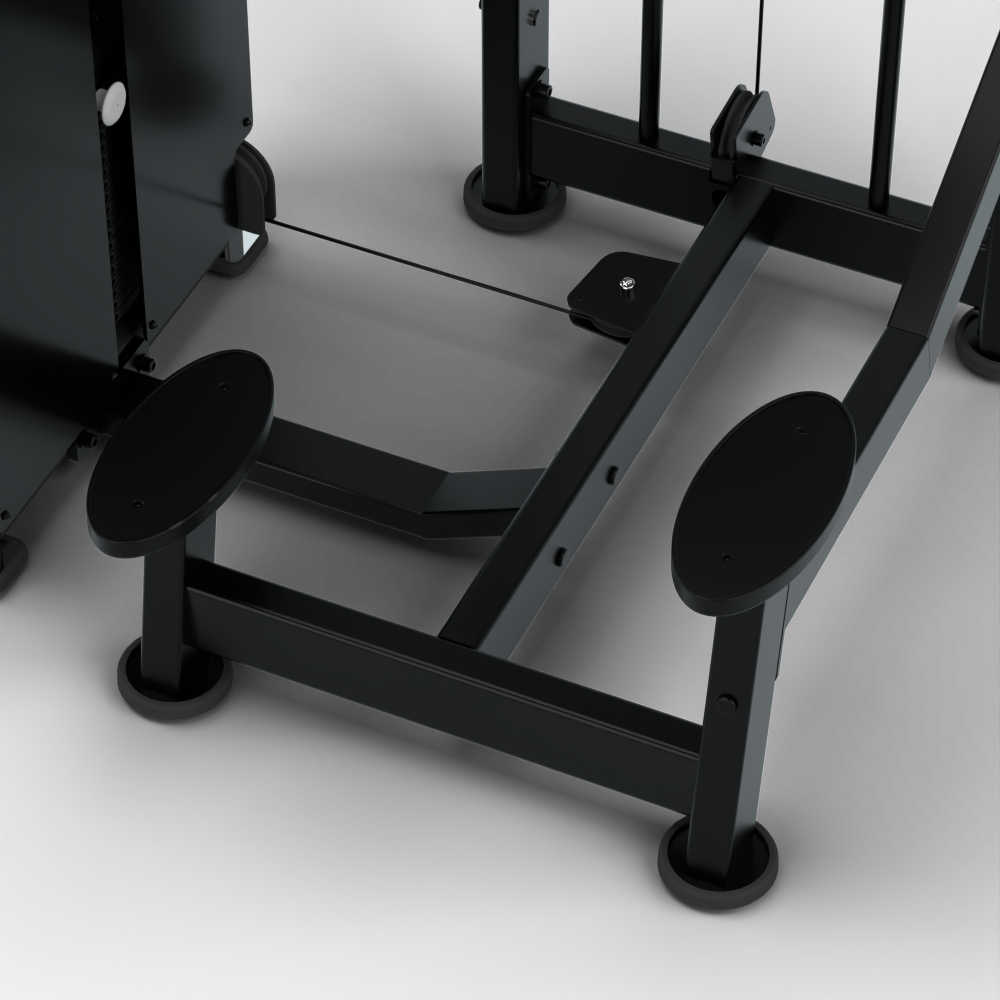

• Stable support platform: enhances safety and control during pull-ups and dips execution.

Technical specifications

• Dimensions: 113.5 × 113.5 × 242 cm
• Weight: 346 kg
• Plate load: 100 kg (+20 kg on demand)
• Frame: Q235 rectangular steel tubing (50 × 100 × 2.5 mm) with galvanized anti-corrosion coating
• Maximum user weight: 180 kg
• Load ratio: 1:1
• Guide material: stainless steel
• Pulley material: POM
• Cable material: steel with rubber coating
• Cable dimensions: Ø 4.8 mm · length 5.9 m
• Grips: aluminum (pull-ups) and rubber (dips)
• Padding: high-density foam with sweat-resistant synthetic leather
• Certifications: CE and EN ISO 20957
